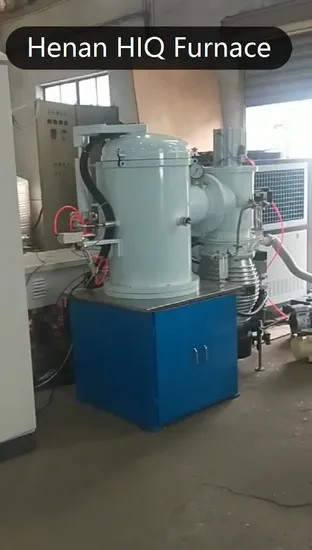

2400 Degree Graphite Vacuum Sintering Brazing Furnace,Tempering Quenching Heat Treatment Induction Heating Tube Carbon Tube Graphite Heating Furnace High Vacuum
Overview Graphite 2400 degree vacuum sintering brazing tempering quenching heat treatment induction heating tube carbon
Description
- Overview
- Product Description
- Detailed Photos
- Certifications
- Packaging & Shipping
- After Sales Service
- Company Profile
Basic Info.
| Model NO. | HIQ-24GVF |
| Type | Stainless Steel Heating Equipment |
| Certification | CE, ISO |
| Structure | Vertical Type |
| Brand | Hiq |
| Max Temperature | 2200 |
| Working Temperature | 2000 |
| Heating Element | Graphite |
| Chamber Size | Dia200*200 |
| Voltage | 380~440V |
| Working Power | 40kw |
| Heating Rate | <=15c/Min |
| Insulation Chamber | Graphite |
| Thermocouple | W-Re Armoured Thermocouple |
| Temperature Accuracy | +/-1c |
| Temperature Uniformity | +/-5c |
| Max Vacuum | 6.67 X 10-3 PA |
| Pressure Rising Rate | <0.67PA/H |
| Cooling | Water Cooling |
| Temperature Controller | PLC |
| Transport Package | Wooden Box |
| Specification | Dia200*400 |
| Trademark | HIQ |
| Origin | China |
| HS Code | 85141990 |
| Production Capacity | 120 Sets Per Month |
Product Description
Graphite 2400 degree vacuum sintering brazing tempering quenching heat treatment induction heating tube carbon tube graphite heating furnace high vacuumVacuum carbon tube furnace is a high-temperature, high vacuum resistance furnace that uses graphite as the heating element. The maximum working temperature can reach 2000 ºC to 2400 ºC. This series of products is widely used in the sintering preparation of inorganic materials (such as ceramic seals, silicon carbide, zirconia, zinc oxide, alumina, etc.), as well as metal materials (such as hard alloys) in vacuum or protective atmosphere. It can also be used for the purification treatment of rare earth elements and their oxides and sapphire annealing treatment. It is also suitable for mass production in various universities and research institutions.
Graphite 2400 degree vacuum sintering brazing tempering quenching heat treatment induction heating tube carbon tube graphite heating furnace high vacuum
Features
- Graphite heating element, max. temperature can be 2200ºC.
- Furnace shell inner layer is stainless steel, the outer layer is carbon steel, double layers water-cooling structure.
- Furnace shell has an observation hole, can see the heating situation in the chamber. Adopt a W-Re thermocouple and infrared thermometer to measure temperature, thermocouple goes in and out automatically.
- PLC auto control or PID auto control
Graphite 2400 degree vacuum sintering brazing tempering quenching heat treatment induction heating tube carbon tube graphite heating furnace high vacuum
Package: wooden box
Shipping: by sea
Graphite 2400 degree vacuum sintering brazing tempering quenching heat treatment induction heating tube carbon tube graphite heating furnace high vacuum
Service commitment:Equipment warranty period: Within 12 months after passing the acceptance inspection. During the warranty period, if the equipment malfunctions due to quality defects, we will provide free service.
Provide free technical guidance for installation and equipment debugging services.
Provide lifetime discounted prices for vulnerable parts and related consumables, and assist users in equipment maintenance and accessory replacement.
Can train technical operators for users, free of training fees, and cover food, accommodation, and transportation costs on their own.
Can provide users with the usage methods and technical guidance of relevant equipment in different situations.
Manufacturer direct sales vacuum graphite heating furnace, high-temperature 2200 degre and high vacuum resistance furnace, nitrogen atmosphere sintering furnace
Company information
We are real and professional OEM of industry furnace over 10 years who has 10 staff of designer and technican experienced for years,
Main products:
Lab muffle furnace,tube furnace,atmosphere furnace;
Dental zirconia sintering furnace;
Ceramic kiln;
Industrial vacuum furnace,vacuum heat treatment furnace;
Vacuum hot press furnace;
Vacuum oil quenching furnace;
Vacuum gas quenching furnace;
Looking forward to our good cooperation! Product Description
Detailed Photos
| Model | Rated Power | Rated Temperature | Working Size | Leak Rate | Final Vacuum | Heating Element |
| ZT-35-20 | 35KW | 2000ºC | Ø140X160mm | ≤3Pa/h | 5X10-3Pa | Graphite Tube |
| ZT-40-22 | 40KW | 2200ºC | Ø160X160mm | ≤3Pa/h | 5X10-3Pa | Graphite Tube |
| ZT-50-22 | 50KW | 2200ºC | Ø160X200mm | ≤3Pa/h | 5X10-3Pa | Graphite Tube |
| ZT-60-20 | 60KW | 2000ºC | Ø260X270mm | ≤3Pa/h | 5X10-3Pa | Graphite Tube |
| ZT-100-20 | 100KW | 2200ºC | Ø320X320mm | ≤3Pa/h | 5X10-3Pa | Graphite Tube |
